Introduction

Welcome to the BAI Connect VoIP User Guide. Your BAI Connect VoIP combines the best in traditional phone system features with modern Internet Protocol (IP) capabilities. In this guide, you will learn how to perform many common tasks on your phone, as well as make full use of your web portal.

Using Your Desk Phone

Making Calls

Making a call with your phone does not require a leading 9. You can dial on-hook or off-hook.

• To dial on-hook

1. Dial the phone number.
2. Pick up the handset, headset, or speaker.

• To dial off-hook

1. Pick up the handset, headset, or speaker.
2. Dial the phone number.

Calls to the US and Canada are all dialed using 10 or 11 digits.

Making International Calls

• To dial an international call

1. Dial the international call code 011.
2. Dial the country code.
3. Dial the local number.

International calling is commonly disallowed to prevent toll fraud.

Extension Dialing

Extensions on your system can be dialed using their 3-to-4 digit extension or by pressing the button on your phone corresponding to the desired extension.

Intercom

VoIP phones provide an intercom feature that allows you to instantly connect to other phones within your office. Intercom functionality is ideal for announcing visitors or asking a quick question.

When one phone intercoms another extension, it does not ring the other phone. Instead, the other phone will beep, and then its microphone and speaker turn on.

• To intercom

1. Dial 7ext. For example, to intercom extension 100, dial 7100.

Receiving Calls

When a call comes in, you can answer it via a headset, speakerphone, or handset.

• To answer a call using a handset
  • Lift the handset off-hook.
• To answer a call using a speakerphone
  • Press the Speaker
• To answer a call using a headset
  • Usage depends on how the headset is connected. Often, you’ll press the button on the headset or press the headset button on the phone.

Voicemail

Accessing Voicemail

• To access voicemail

1. Press the Messages button on your phone to access your voicemail box, or dial 5001 if you can not identify the voicemail button.
2. If you subscribe to multiple mailboxes, a list of mailboxes may appear. Select the mail box you want to access.
3. When prompted, enter your voicemail pin, and then press #.

• To access another person’s mailbox

1. Dial 5000.
2. When prompted, enter the other person’s extension number.
3. Enter the voicemail PIN of the other person’s mailbox, followed by #.

Setting Up Your Mailbox

The first time you log in to your mailbox you are walked through recording your name for the directory and recording your personal greeting.

The name recording is for the dial-by-name directory, so when someone enters the first three letters of your last name, it will play back your name recording.

The greeting plays when your mailbox is reached. It is very important to make a custom message, as many callers will not leave messages at mailboxes that have generic greetings.

Alternate Greetings

Your mailbox supports multiple greetings for different scenarios like business trips and holidays.

• To record an alternate greeting

1. From your mailbox, press 6 for greetings, and then press 1 to record an alternate greeting.
2. When prompted for the greeting number press 2 for your next alternate greeting (1 is your default greeting).
3. After your recording is completed, select the active greeting by selecting option 3 in the greetings menu.

Voicemail Tree

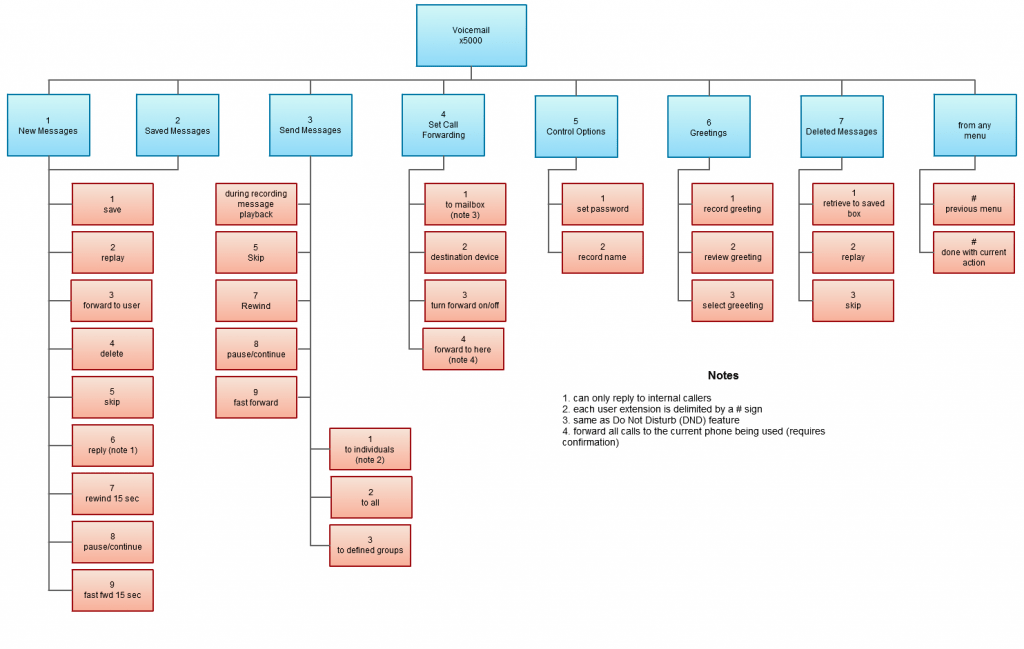

On the next page you’ll find a voicemail tree showing what to dial for each option in your mailbox.

Handling Calls

Your BAI Connect VoIP features various ways to move calls around, including attended transfer, unattended (blind) transfer, voicemail transfer, park, and more. In this section, references to BLFs are the 1-touch buttons to extensions common at front-desk phones.

Attended Transfer

Attended transfer allows you to speak to the transfer recipient prior to completing the transfer while the caller is on hold.

• To perform an attended transfer using Polycom and Yealink phones

1. Press the Transfer key/softkey on your phone.
2. Dial the recipient’s extension or press their BLF.
3. Speak to the recipient, and then either press Transfer again to complete or cancel if the recipient cannot take the call.

Blind Transfer

Blind transfer goes straight to the recipient.

• To blind transfer using Polycom phones with older firmware

1. Press Transfer.
2. Press the Blind (if there is no Blind softkey see directions for new firmware)
3. Enter the extension of the recipient or the recipient’s BLF.

• To blind transfer using Polycom phones with newer firmware

1. Press and hold the Transfer button.
2. Select Blind from the on screen menu
3. Enter the extension of the recipient or the recipient’s BLF.

• To blind transfer using Yealink phones

1. Press Transfer.
2. Dial the extension of the recipient
3. Press Transfer.

Transfers to External Numbers

A transfer can also go to an external number such as a cell phone. Follow the transfer directions above but instead of dialing an extension, dial a 10 digit phone number.

Voicemail Transfer

Voicemail transfer goes straight to the recipient’s voicemail box without ringing the recipient’s phone.

• To perform a voicemail transfer
• Perform a blind transfer with an 8 prefix before the extension. For extension 111’s voicemail, for example, blind transfer to 8111.

Park and Hold

On your phone system, hold is a local function. This means a call held on your phone cannot be picked up at another station. Park is a system-wide function. This means a call parked at one phone may be picked up by any phone.

• To park a call

1. Dial *** in an active call from any phone. The system says, “The call is parked at 7xx.”
2. Hang up.

To retrieve the parked call, dial 7xx where xx is the number stated by the system.

Directed Call Pickup

Directed call pickup (DCP) allows you to answer a call ringing at another station.

• To perform a directed call pickup
• Dial 07ext. If 111 is ringing, for example, dial 07111 to pick up that call.

Phones with BLFs to the ringing station can also press the corresponding BLF.

3-Way Conference

• To make a 3-way conference

1. Call or be called by the first participant in the conference.
2. Press the Conference key/softkey, and then dial the second participant.
3. After the second participant picks up, press Conference again to connect everyone.

Using the User Web Portal

Accessing the Portal

• To access the web portal

1. Start a web browser.
2. Go to https://bai-portal.iisvoip.net/portal/
3. At the login page (see Figure 2‑1):

• Click in the Login name field and type ext@com, where customerdomain.com typically is the same as your email address domain.
• Click in the Password field and enter your user password.

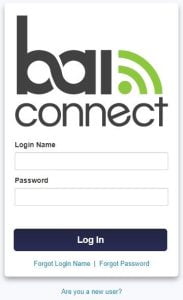

Figure 2‑1. Login Page

Desktop Call Control

Desktop call controls appear when making or receiving a call. These controls allow you to see who is calling and manage a current call.

Incoming Calls

Incoming calls appear in a window in the portal similar to the one in Figure 2‑2. This window shows the caller ID name and number, along with Reject and Answer buttons.

• Selecting Reject sends the call to voicemail if available. The Answer button may not be available, depending upon your handset model.

Figure 2‑2. Example of an Incoming Call

Active Calls

Figure 2‑3 shows an active call window that displays the caller ID and call time. The three controls at the bottom of the window let you hold, hang up, or transfer the call. If you select transfer, a field appears for entering the extension of the recipient. If you prefix the recipient’s extension number with 8, the call goes straight to voicemail.

Figure 2‑3. Example of Active Call Window

Home

The Home page of your portal provides an at-a-glance view of everything going on with your extension. Table 2‑1 describes the areas on the Home page.

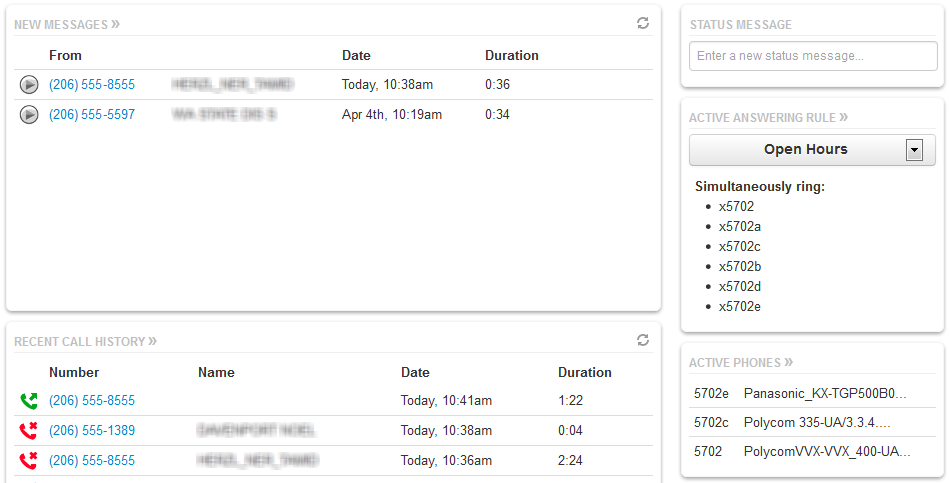

Figure 2‑4. Example of Home Page

Table 2‑1. Fields in the Home Page

Voicemail

You configure voicemail using the Messages page. This page has two tabs for handling voicemail:

• Messages — see “Messages” below.
• Settings — see “Voicemail Settings” on the next page.

To display the Messages page, click the Messages icon at the top of the page:

Messages

The Messages tab allows you to manage your new, saved, and deleted voicemail, as well as greetings and other settings.

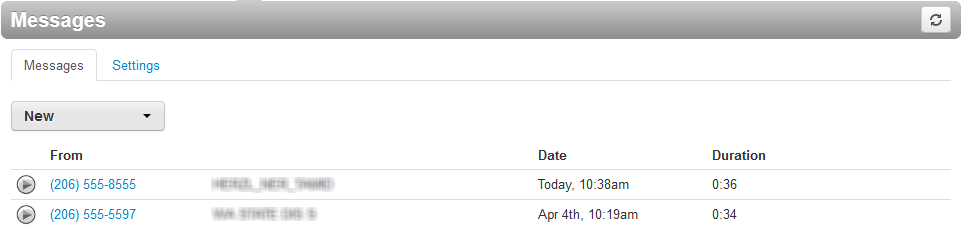

Figure 2‑5. Messages Page

Like the Home page, you can play messages, click a number to call it back, and download, save, forward, and delete messages. To see all the controls available, hover the mouse pointer over a message.

The New drop-down list allows you to review New, Saved, and Trash (recently deleted) messages.

Voicemail Settings

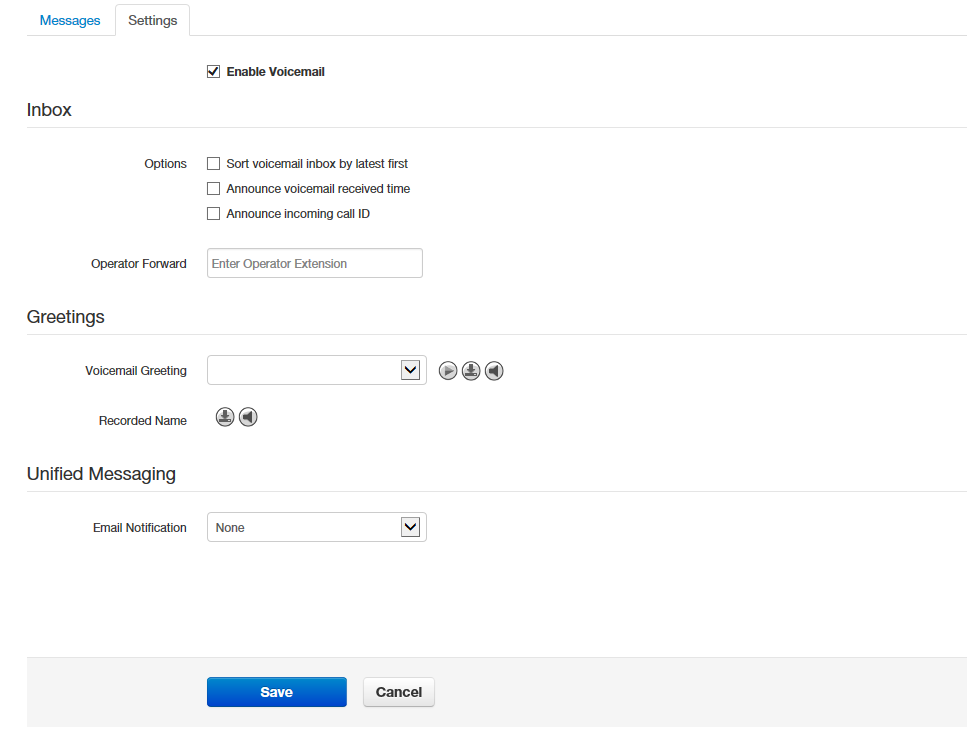

Clicking the Settings tab displays options for controlling your voicemail order, timestamps, greetings, and voicemail to email.

Figure 2‑6. Settings Tab

Table 2‑2. Fields in the Settings Tab

Recording a Greeting

• To record a greeting

1. 1. From the Settings tab of the Messages page, click the speaker icon .

   A Manage Greetings page similar to the one in Figure 2‑7 appears.

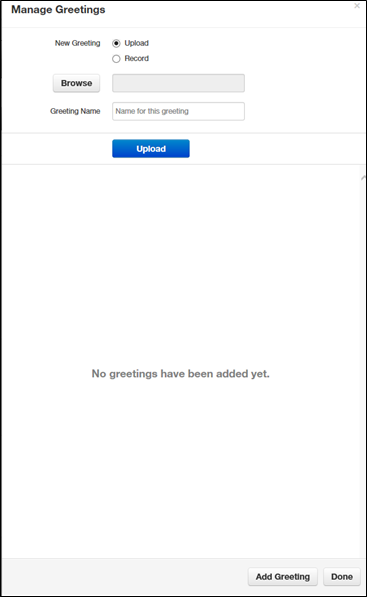

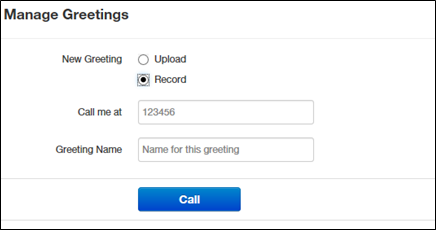

   Figure 2‑7. Manage Greetings Page

   2. Next to New Greeting, click Record.

   The Browse button changes to a Call me at field.

2.
   3. In the Call me at field, enter a number to call. This can be an extension or a telephone number such as your cell phone.
   4. In the Greeting name field, enter a name for this greeting.
   5. Click the Call
   6. At the prompt, record the new greeting. When you finish the greeting, press #.
   7. Click Add Greeting at the bottom of the Manage Greetings page, and then click Done to close the page.

Uploading a Greeting

• To upload a greeting

1. From the Settings tab of the Messages page, click the speaker icon.

A Manage Greetings page similar to the one in Figure 2‑7 on page 20 appears.

2. Hover over a greeting. Options appear for editing, deleting, or renaming the greeting.
3. Next to New Greeting, click Upload.
4. Click the Browse
5. In the Choose File to Upload dialog box, select a WAV or MP3 recording from your PC, and then click Open.

The path and file name appear in the Browse field.

6. Click Upload.
7. Click Add Greeting at the bottom of the Manage Greetings page, and then click Done to close the page.

Recorded Name

If your company has a dial-by-name directory, you must record your name for the directory to be found. You can click the play button to listen to your current name recording on your PC, or click the speaker button to record or upload a new name recording.

Answering Rules and Time Frames

Though Answering Rules and Time Frames are separate tabs, they are so interconnected that describing them together makes sense.

Time Frames

Time frames allow you to control the scheduling of the system. You configure time frames using the Time Frames page. To display this page, click the Time Frames icon at the top of the page:

Three common time frames are:

• Open Hours (for example, M-F 9am-5pm)
• Holidays (Independence Day, Thanksgiving, New Year’s, and so on)
• Closed Hours (all other times)

Time frames can be both shared (system-wide and set by the administrator) or personal to your extension. You can add a time frame to your extension by clicking the Add Time Frame.

• To add time frames

1. From the Time Frames page, click Add Time Frame.

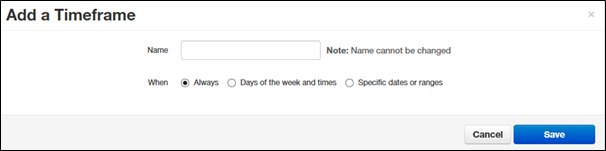

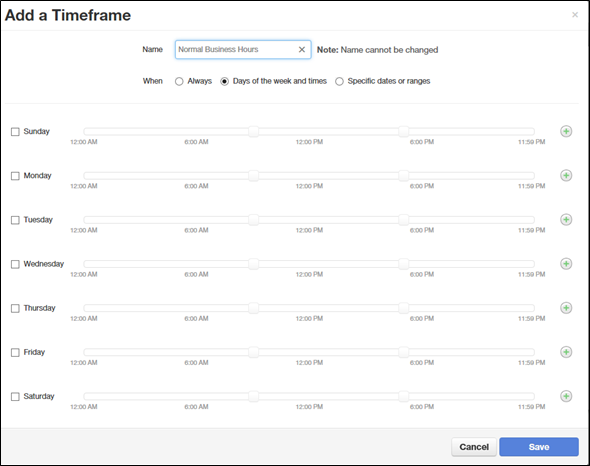

The Add a Timeframe page appears.

2. In the Name field, enter a name for this time frame.
3. Next to When, select the time period when the time frame will be applied:

• Always = select this option if the time frame will always be applied. Click Save to complete the procedure.
• Days of the week and times = select this option to select days and times when the time frame will be applied. Proceed to “If you select Days of the week and times” on page 24.
• Specific dates or ranges = select this option to specify a specific date or range of dates. Proceed to “If you select Specific dates or ranges” on page 28.

If you select Days of the week and times

Options appear for selecting days and times when the time frame will be applied (see Figure 2‑8).

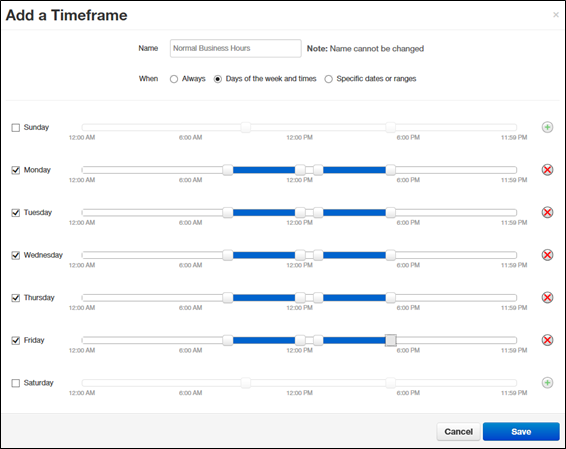

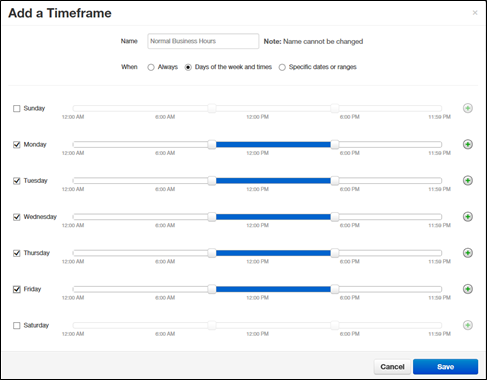

Figure 2‑8. Setting Days of the Week and Times

1. Using the check boxes next to the name of each day of the week, check the days when the time frame will be applied. A blue line to the right of checked day shows the default hours for this time frame (9:00 AM through 5:00 PM).

2. To change the start time, drag the button on the left side of the blue bar either to the left to begin the start time earlier or to the right to begin the start time later.

3. To change the end time, drag the button on the right side of the blue bar either to the left to shorten the end time or to the right to lengthen the end time.

Hint: To fine-tune start and end times, click start time or end time button, and then use the left and right arrow keys on your keyboard to change the time in 5-minute increments.

4. By default, each day is made up of one time period. However, you can use the icon to define two time periods per day. For example, the figure below shows a setup for an office that answers calls in the morning and afternoon, and then transfers calls to an answering service over lunch, on Monday through Friday. By doing this, you would create two time frames (for example, one from 8 to noon and another from 1:00 to 5:00 PM).

4. Click Save to save your selections.

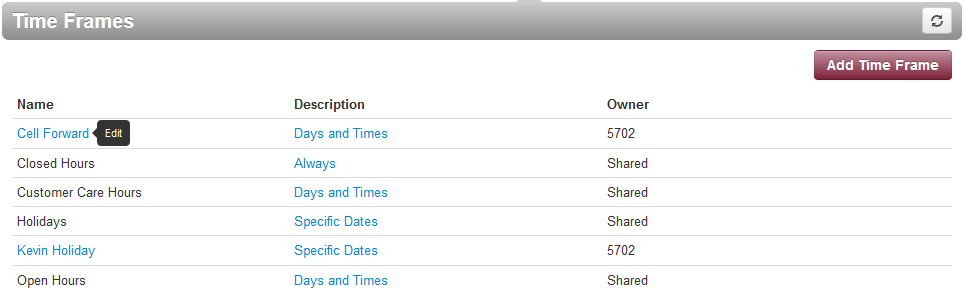

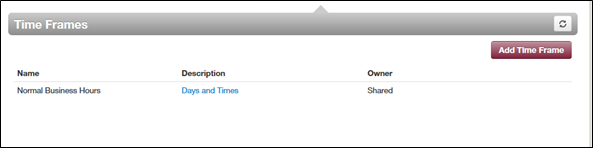

The time frame appears as a row on the Time Frames page.

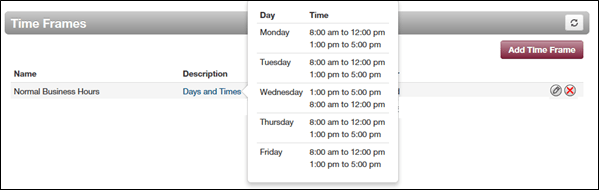

Hint: Moving the pointer over the blue text in the Description column shows the settings for that timeframe.

If you select Specific dates or ranges

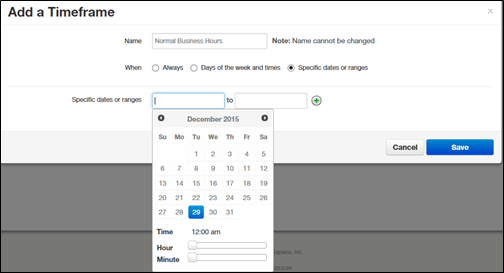

Fields appear for entering dates or ranges (see Figure 2‑9).

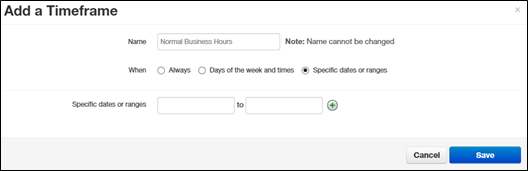

Figure 2‑9. Setting Dates or Ranges

1. Click in the left field, and then select a starting date and time from the pop-up calendar.

2. Click in the right field, and then select an ending date and time from the pop-up calendar.

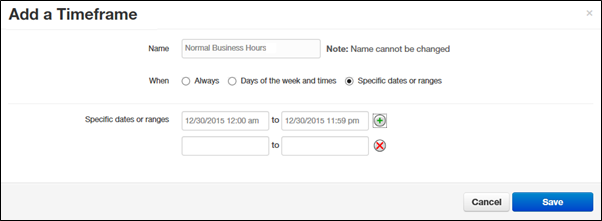

3. To specify additional ranges, click the  icon to display another row of fields, and then repeat steps 1 and 2 in the new fields. Repeat this step for each additional date or range you want to specify. To delete a date or range, click the  icon next to the appropriate row.

2. Click Save to save your selections.

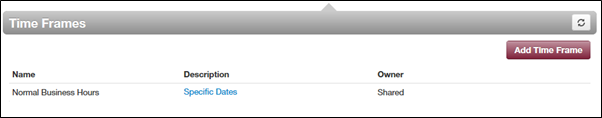

The time frame appears as a row on the Time Frames page.

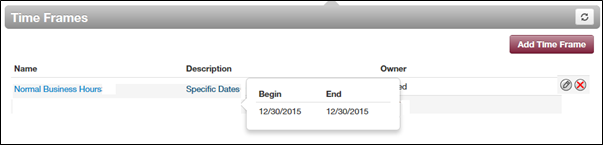

Hint: Moving the pointer over the blue text in the Description column shows the settings for that timeframe.

Answering Rules

After you set up your time frames, you can create different answering rules for your time frames. You configure answering rules using the Answering Rules page. To display this page, click the Answering Rules icon at the top of the page:

The left side of the Answering page has a Rings for n seconds drop-down list that allows you to specify the maximum ring time (one ring is generally 5 seconds). When that time expires, the caller will be forwarded to the Call Forward When Unanswered rule if defined; otherwise, the caller will be forwarded to voicemail if enabled. The right side of the Answering Rules page has buttons for adding answering rules, and specifying allowed and blocked numbers.

Figure 2‑10 shows examples of answering rules. In this figure:

• The extension has a rule to simultaneously ring many desk phones during Open Hours.
• Cell Forward rings many desk phones and a cell phone simultaneously.
• Holiday and closed hour rules go straight to voicemail.

The active rule is the topmost rule that matches the conditions in the corresponding time frame. In Figure 2‑10, for example, the time is around 1pm on Friday, so both Open Hours and Cell Forward rule match the time/day condition, but Open Hours is active because it is the topmost rule. You can change the order by using the arrows at left of each rule to drag the rules.

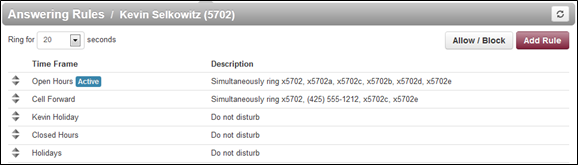

Figure 2‑10. Sample Answering Rules

• To add an answering rule

1. 1. From the Answering Rules page, click Add Rule.

   The Add an Answering Rule page appears. From this page, you can create rules to screen callers, forward calls, and ring multiple numbers simultaneously.

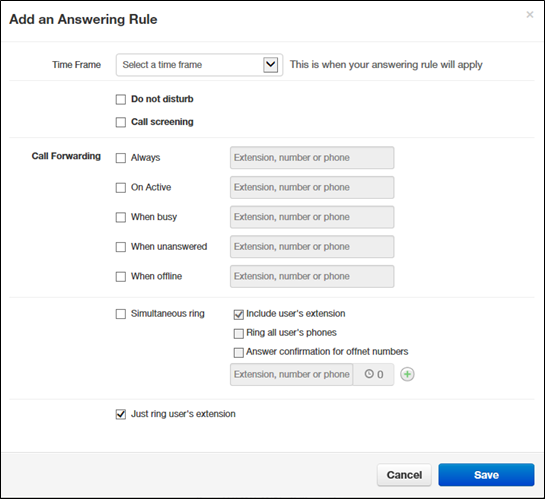

   Figure 2‑11. Add an Answering Rule Page

2. 2. Complete the fields in the Add an Answering Rule page (see Table 2‑3).
   3. Click Save.

Table 2‑3. Fields in the Add an Answering Rule Page

Call Forward Drop-down Options

When entering an extension as a call forward option, a drop-down list allows you to forward the call to specific resources associated with that extension. Table 2‑4 describes the options. Some options may not appear, depending on the features associated with the extension.

Table 2‑4. Call Forward Drop-down Options on the Add an Answering Rule Page

Ring Timeout

At the top of the page is the ring timeout selection. This option specifies the number of seconds that your phones will ring or forwarding rule before going to voicemail (when available).

Allowing or Blocking Callers

The Answering Rules page has an Allow/Block button that allows you to permit or block calls from certain numbers. Using this feature, you can block unwanted calls to your phone, as well as calls from anonymous and unwanted numbers. Allowed numbers bypass user Do Not Disturb and Call Screening rules to ring through immediately.

1. From the Answering Rules page, click Allow/Block.

The Allow/Block page appears. This page has two lists, one for allowed phone numbers (on the left) and another for blocked phone numbers (on the right).

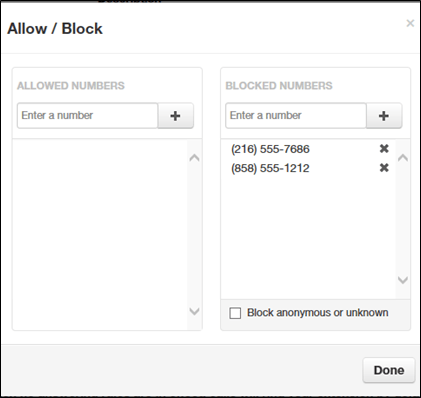

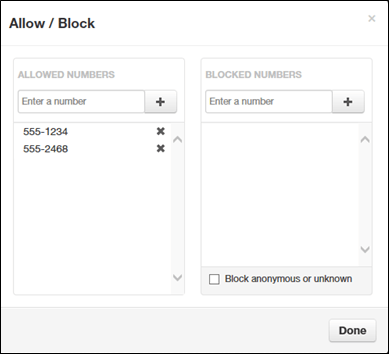

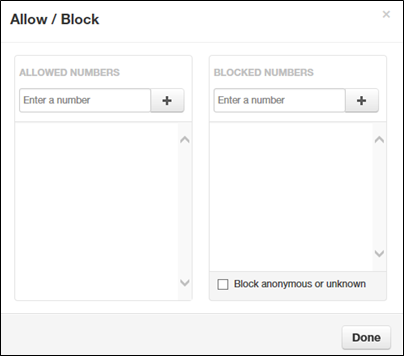

Figure 2‑12. Allow/Block Page

2. To allow phone numbers, perform the following steps under ALLOWED NUMBERS:
   • Click in the Enter a number field
   • Enter the number you want to allow.
   • Click the button. The number appears in the ALLOWED NUMBERS list and a brief message tells you the allowed number was added.
   • To add more numbers, repeat step 2.
   • To remove a number, click the button next to that number.

Figure 2‑13. Example of Allowed Numbers

3. To block phone numbers, perform the following steps under BLOCKED NUMBERS:
   • Click in the Enter a number field
   • Enter the number you want to block.
   • Click the button. The number appears in the BLOCKED NUMBERS list and a brief message tells you the blocked number was added.
   • To add more numbers, repeat step 3.
   • To remove a number, click the button next to that number.
4. To block anonymous calls and calls from unknown numbers, check Block anonymous or unknown.

Figure 2‑14. Example of Blocked Numbers

5. When you are finished, click Done.

Contacts

By default, contacts contain all the extensions on your system. However, you can add contacts to enable easier access to everyone you need to reach.

You configure contacts using the Contacts page. To display this page, click the Contacts icon at the top of the page:

The following figure shows an example of a Contacts page. The sections following the figure describe the key areas on the page.

Filter and Search

The All pull-down list allows you to search contacts by group. Using this list, you can select groups to search such as Favorites, Departments, Available, Busy, and more. Selecting a group filters the contacts on the page to show only the ones located in the group selected.

The Enter a name or extension field below the drop-down list allows you to search by contact name or extension. Entering a name or extension in this field filters the contacts on the page to show only the ones that match your entry. Click the  in this field to delete your entry and redisplay all contacts.

Add and Import Contacts

The Add Contact button allows you to add a contact one at a time. These are for external contacts only. Your contact list will automatically update with your internal extensions.

Import will allow you to select a file from your PC, the import can accept CSVs from Microsoft Outlook and Gmail as well as vCards.

Adding a Contact

• To add a contact

1. From the Contacts page, click Add Contact.

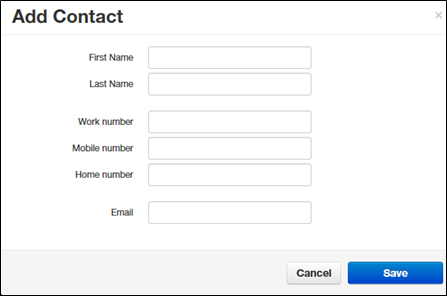

The Add Contact page appears.

2. Complete the fields in the Add Contact page (see Table 2‑5).
3. Click Save.

The contact appears on the Contacts page.

Table 2‑5. Fields in the Add Contact Page

Importing Contacts

• To import contacts

1. From the Contacts page, click Import.

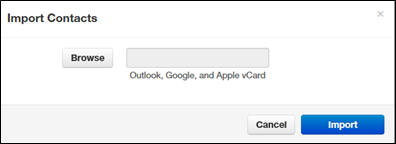

The Import Contacts pop-up window appears.

2. Click the Browse
3. In the Choose File to Upload dialog box, go to the location where the file you want to import is located. Click the file, and then click Open.

The path and file appear in the Browse field.

4. Click Import.

The imported contacts appear on the Contacts page.

Selecting Favorites

When hovering over a contact, a light gray star appears next to the contact name. Clicking the star selects the contact as a favorite and changes the color of the star to yellow.

Editing Contacts

When hovering over a contact you’ll see an edit button on the far right, click that button to edit the contact.

Phones

The Phones page allows you to manage your phones. To display the Phones page, click the Phones icon at the top of the page:

Each row shows a phone that has been added to the system, along with:

• Whether the phone is registered.
• The phone name and device type. The hyperlink below the Name column allows you to edit the phone information. You can also edit or delete phones using icons on the right side of the row.
• The phone’s IP address, MAC address, and line number on the phone associated with your extension.

Clicking the Refresh button  updates the information shown on the page.

The page has an Add Phone button that adds phones to your system. This task usually is performed by administrators and is not described in this guide.

Music On Hold

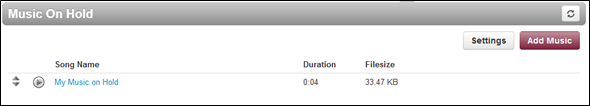

Music on Hold allows you to specify personal music on hold for your extension. You configure music on hold files using the Music On Hold page. To display this page, click the Music on Hold icon at the top of the page:

The Add Music button allows you to add music on hold files. When you add music on hold files, the file name appears on the Music On Hold page, along with the duration and file size. The Settings button allows you to play an introductory greeting.

If you hover over a file you can see options to play the file, download the file, edit the name, or delete the file. If multiple files are uploaded you can rearrange them using the arrows at the left of the page.

Adding Music on Hold Files

• To add music on hold files

1. From the Music On Hold page, click Add Music.

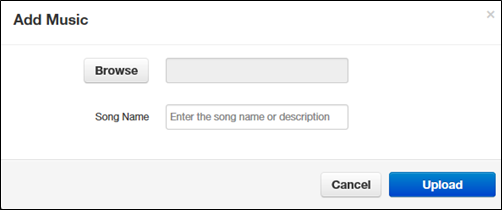

The Add Music page appears.

2. Click the Browse
3. In the Choose File to Upload dialog box, go to the location where the file you want to import is located. Click the file, and then click Open.

The path and file appear in the Browse field.

NOTE: The music file must be in MP3 or WAV format, and must be properly licensed.

4. In the Song Name field, enter a name for the song.
5. Click Upload.

The music file appears on the Music on Hold page.

Playing an Introductory Greeting

• To play an introductory greeting before having the music on hold file play

1. From the Music On Hold page, click

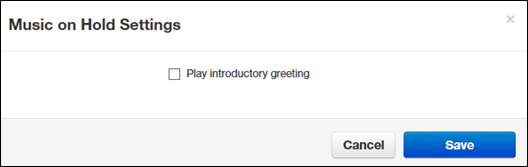

The Music on Hold Settings page appears.

2. Check Play introductory greeting.
3. Click Save.

Call History

The Call History page shows a log of all your extensions calls. It also provides tools to filter and export data.

The left side uses color-coded icons to represent call status:

• Green = outbound calls
• Blue = inbound received calls
• Red = missed calls

Moving your screen pointer over an icon displays a tooltip with the call status. For example:

You can click a number in the Number column dial back the number. Clicking the Refresh button  updates the information shown on the page.

To display the Call History page, click the Call History icon at the top of the page:

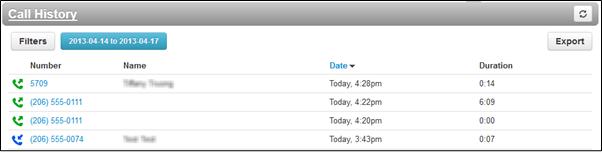

The following figure shows an example of the Call History page. The sections following the figure describe the Filters and Export buttons.

Filtering the Call History

The Filters button allows you to filter the information displayed in the Call History page, so you can view only the information that interests you.

• To filter the call history

1. From the Call History page, click Filters.

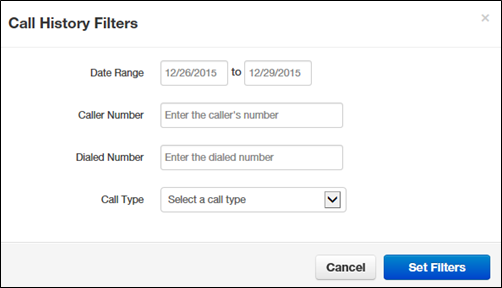

The Call History Filters page appears.

2. Complete the fields in the Add Contact page (see Table 2‑6).
3. Click Set Filters.

The Call History page appears, with only the items that match your criteria.

Table 2‑6. Fields in the Call History Filters Page

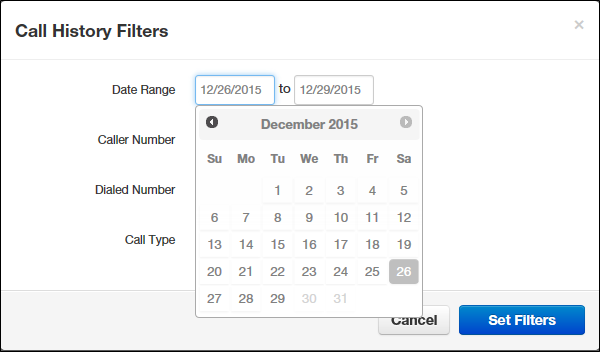

Figure 2‑16. Selecting a Start Date from the Pop-up Calendar

Exporting the Call History Log

• To export the call history log

1. From the Call History page, click Export.

Depending on your browser, the history log is downloaded to your computer or you are prompted to save the log. The log is in comma-separated-value (CSV) format.

2. After downloading the log, you can open it using Microsoft Excel, Google Docs, and other spreadsheet applications.

Profile

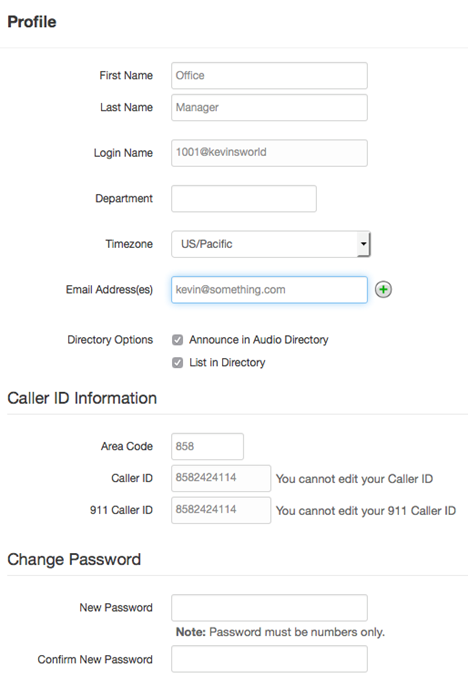

Clicking the Profile link at the top-right of the page displays the Profile page. From this page, you can configure the settings in Table 2‑7.

Table 2‑7. Fields in the Profile Page
